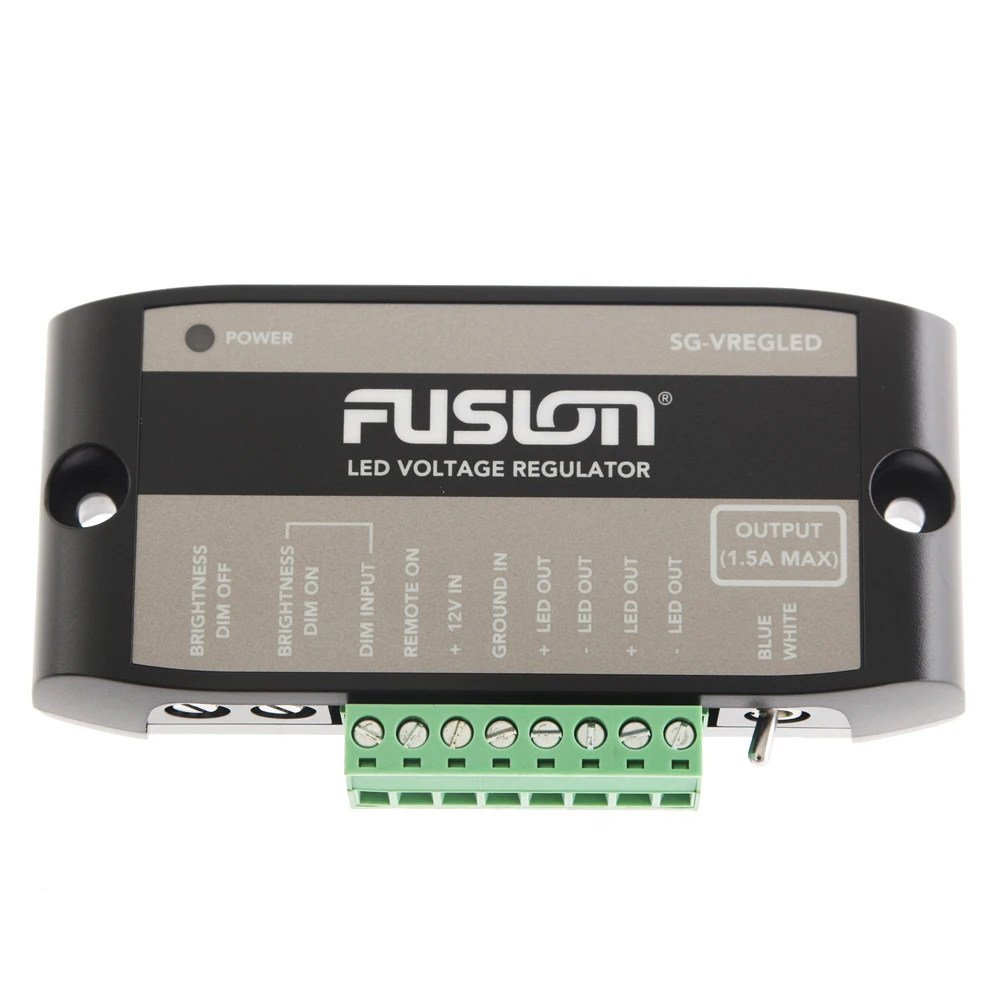

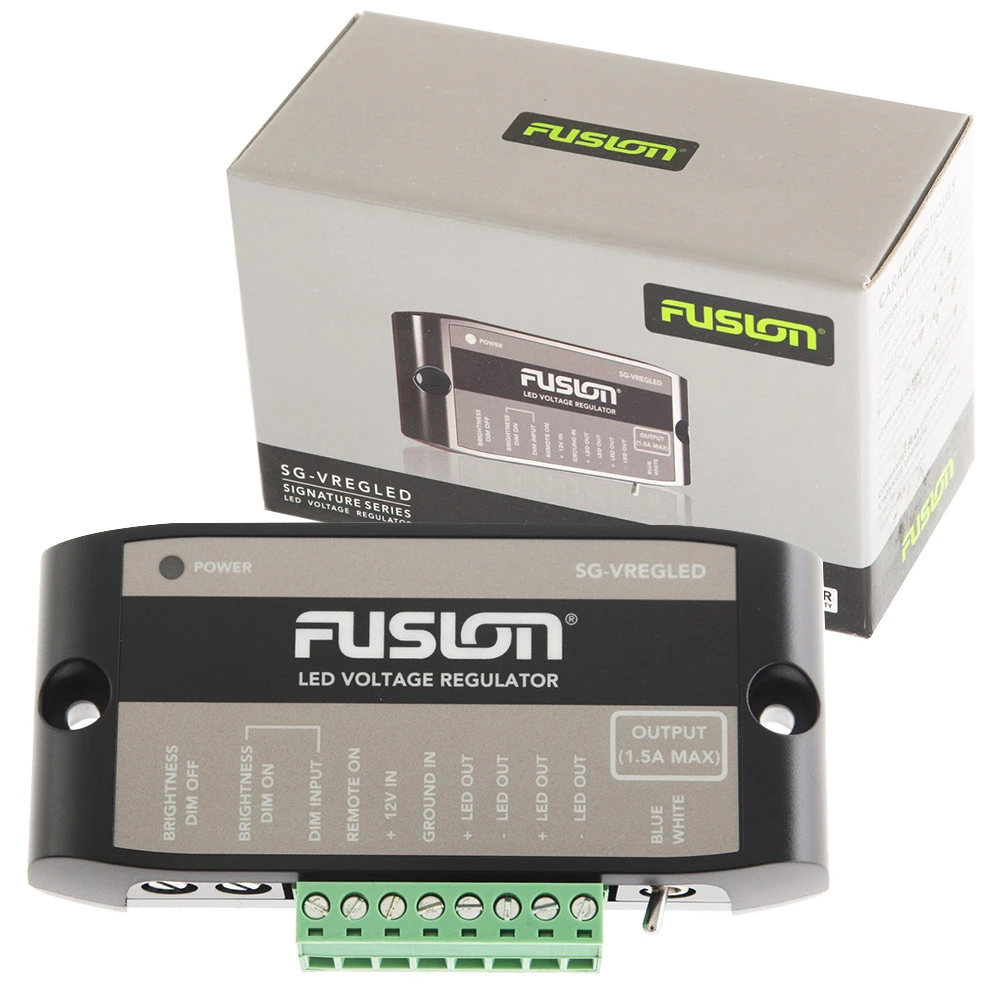

Fusion SG-VREGLED Signature Series LED Voltage Regulator

Ensures constant voltage supply

The Fusion SG-VREGLED Signature Series LED Voltage
Regulator provides a constant voltage supply to the
connected Signature speaker or subwoofer installation, ensuring
stable LED illumination for up to 10 speakers/subwoofers. It also
includes smart protection against output short circuits and input
over voltage.

Fusion SG-VREGLED Signature Series LED Voltage Regulator
Features:

• Provides a constant voltage supply to the connected Signature
  speaker or subwoofer installation
• Ensures stable LED illumination for up to 10
  speakers/subwoofers
• Smart protection against output short circuits and input over
  voltage
• Control options include: Power On/Off for illumination, colour
  switching between Blue or White and a dimmer function
• Pluggable terminal block connector ensures installation, or the
  addition of more speakers is as easy as plug-n-play

Fusion SG-VREGLED Signature Series LED Voltage Regulator
Specifications:

• Input current: 3 Amp Maximum
• Input voltage: 10.8 – 16 VDC
• Output current: 1.5 Amp Maximum
• Output voltage: 5 – 15 VDC (Adjustable)
• Water resistance: IPx2 when correctly mounted
• Mounting dimensions (HxLxW): 23.5mm x 110mm x 62.4mm (15/16″ x
  4-5/16″ x 2-7/16″)

Fusion SG-VREGLED Signature Series LED Voltage Regulator
Instruction Manual
