Fusion SG-FL77SPW Signature Marine Speakers With LED 7.7in 280W White

Built for the harsh marine environment

Pushing the boundaries of what is possible on the water, the
Fusion SG-FL77SPW Signature Marine Speakers are
designed to offer unparalleled performance even when exposed to the
harshest marine conditions. Combining ‘CURV’ Cone composite
technology with a Silk Dome tweeter and fully sealed crossover
components, the Sports Signature 7.7” Speaker system is an
aggressively styled solution for premium on-water listening.
Featuring Dual-Colour diffused LED Lighting options that illuminate
Striking Blue or Sparkling White, to either set the mood or start
the party.

Delivering a thunderous 280-Watt output, this Signature series
creates its own wake.

CURV Cone Technology
Incorporating CURV woven fibre composite, which is heat pressed, to
form a lighter and stronger cone that delivers greater sound
definition and higher output, for greater resistance to the marine
environment.

Fully Sealed Crossover Components
Providing full protection from the harsh marine environment, whilst
delivering improved frequency response at the crossover point for a
detailed spectrum of audio and new level of acoustic
performance.

Sports Styled Grille
A structurally ridged True-Marine design for the ultimate cone
protection, that delivers great looks to complement any vessel.
It’s also engineered for internal or external installation.

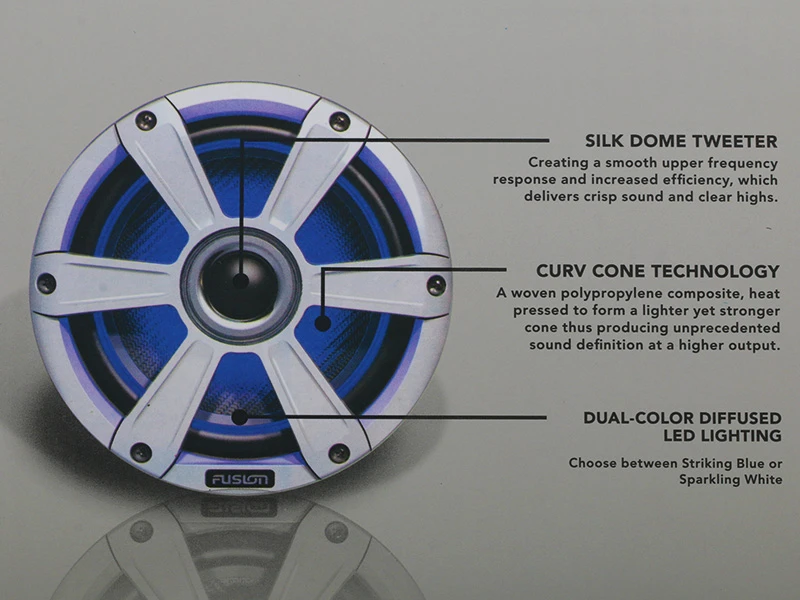

Silk Dome Tweeter
Creating a smooth upper frequency response and increased
efficiency, which delivers crisp sound for unrivalled
enjoyment.

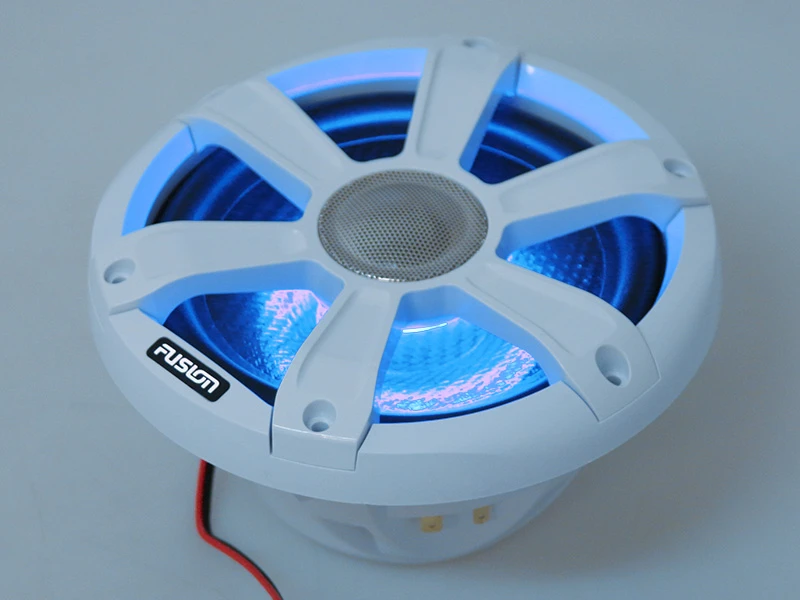

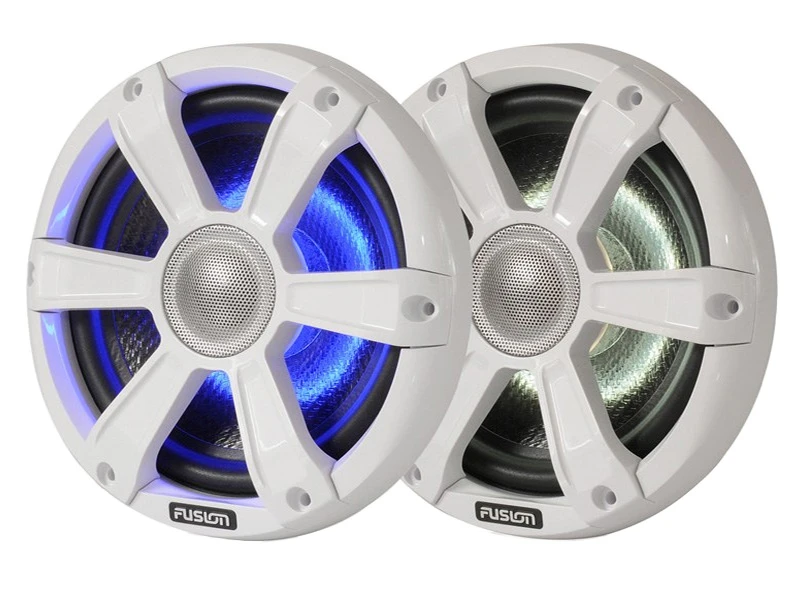

Dual-Colour diffused LED Lighting option
Select either a Striking Blue or Sparkling White LED illumination
for your speaker cone to add instant appeal that will energize your
boating experience.

Fusion SG-FL77SPW Signature Marine Speakers

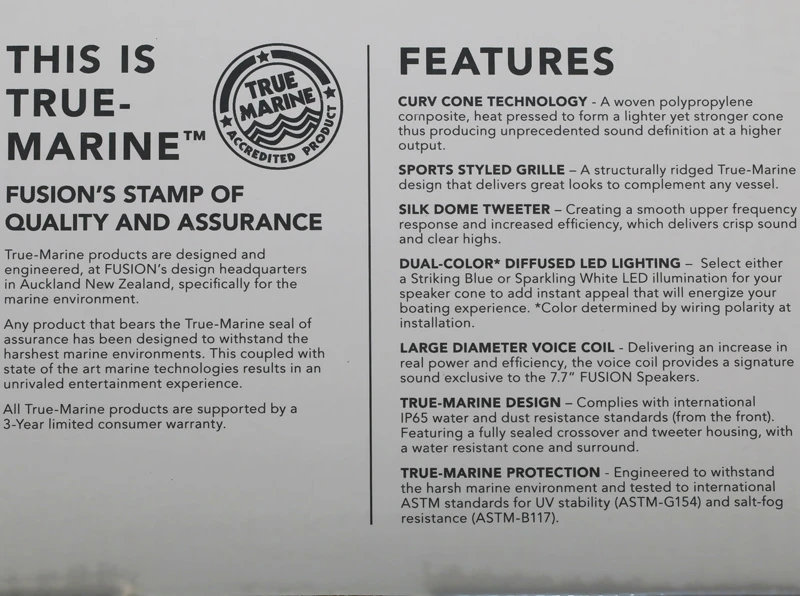

Features:

• Curv cone technology
• Dual-colour diffused LED lighting
• Silk dome tweeter
• Fully sealed crossover components
• Large diameter voice coil
• True Marine design
• Diameter: 7.7″

Fusion SG-FL77SPW Signature Marine Speakers

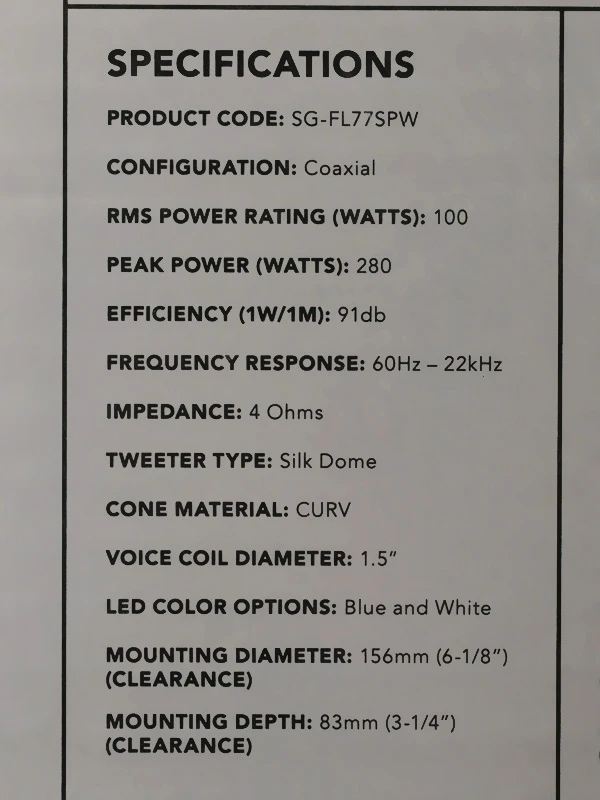

Specifications:

• Cone Material: CURV
• Configuration: Coaxial
• Efficiency (1W/1M): 91db
• Frequency Response: 60Hz-22KHz
• Impedance: 4 Ohms
• LED Colour Options: White and Blue
• Peak power (Watts): 280
• Product Code: SG-FL77SPW
• RMS Power rating (Watts): 100
• Tweeter Type: Silk Dome
• Voice Coil Diameter: 1.5”

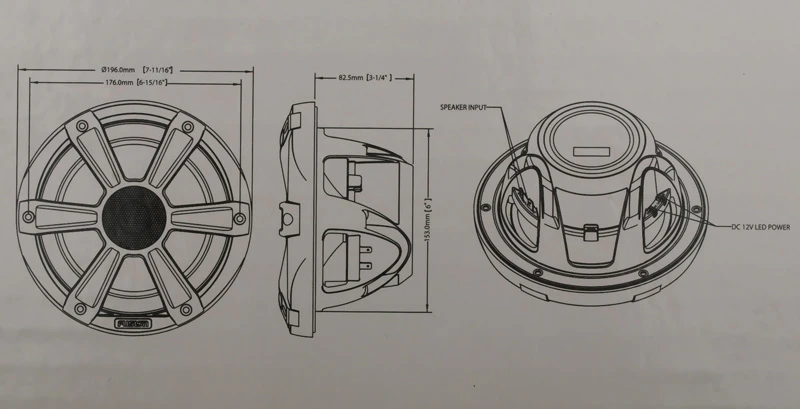

• Mounting Depth: 82.5mm (3-1/4”)
• Mounting Diameter: 153mm (6”)

What’s in the box:

• 2 speakers
• 2 tinned, pre-terminated speaker wires (6 m)
• 12 Phillips stainless steel, 4.2 mm x 38 mm (8 gauge x 1.5 in.)
  mounting screws
• Mounting template
• 2 tinned LED connection cables (6m)
• Hex key

Note: Colour determined on wiring polarity at
installation.
