Fusion MS-NRX300 Marine Wired Remote And NMEA 2000 Repeater

Everything you want from a wired remote and more

The Fusion MS-NRX300 Marine Wired Remote is an
out-of-the-box solution for adding localised control of a
compatible Fusion marine entertainment system to any vessel.

The Fusion MS-NRX300 Marine Wired Remote features
a sleek new innovation: the glass helm flush mounting option. You
can now choose either a flush mount for a stunning glass helm
finish, or you can easily install with the conventional dash mount
finish. Either way, the feature packed MS-NRX300 will give you
everything you want from a wired remote and more.

Multi-Zone Technology
Install a remote in each independent audio zone, up to four zones
depending on your Fusion marine entertainment system, to create
localised volume control, as well as, global source control. Now
you have even more control in creating a customised audio
entertainment experience around your vessel.

IPx7 Waterproof
Perfect for installation on a swim platform, deck or within the
cabins, the MS-NRX300 is designed and engineered for the marine
environment.

NMEA 2000 Certified
The MS-NRX300 is certified for connection to any NMEA 2000 network
making for a quick and easy installation. Once connected, the wired
remote will double as a NMEA Repeater.

Optically Bonded 2.6” LCD Display
The MS-NRX300 sports a large, high contrast, daylight viewable
display making it easy to navigate and stay in control of your
audio entertainment experience.

NMEA 2000 Repeater
The MS-NRX300 remote control can be configured to display supported
NMEA2000 network data from compatible marine electronics connected
to the same network. The following information is available:

• Wind Direction
• Wind Speed
• Depth
• Speed over Ground
• Speed through Water
• Heading
• Position
• Water Temperature
• Atmospheric Pressure
• ETA

What’s in the box:

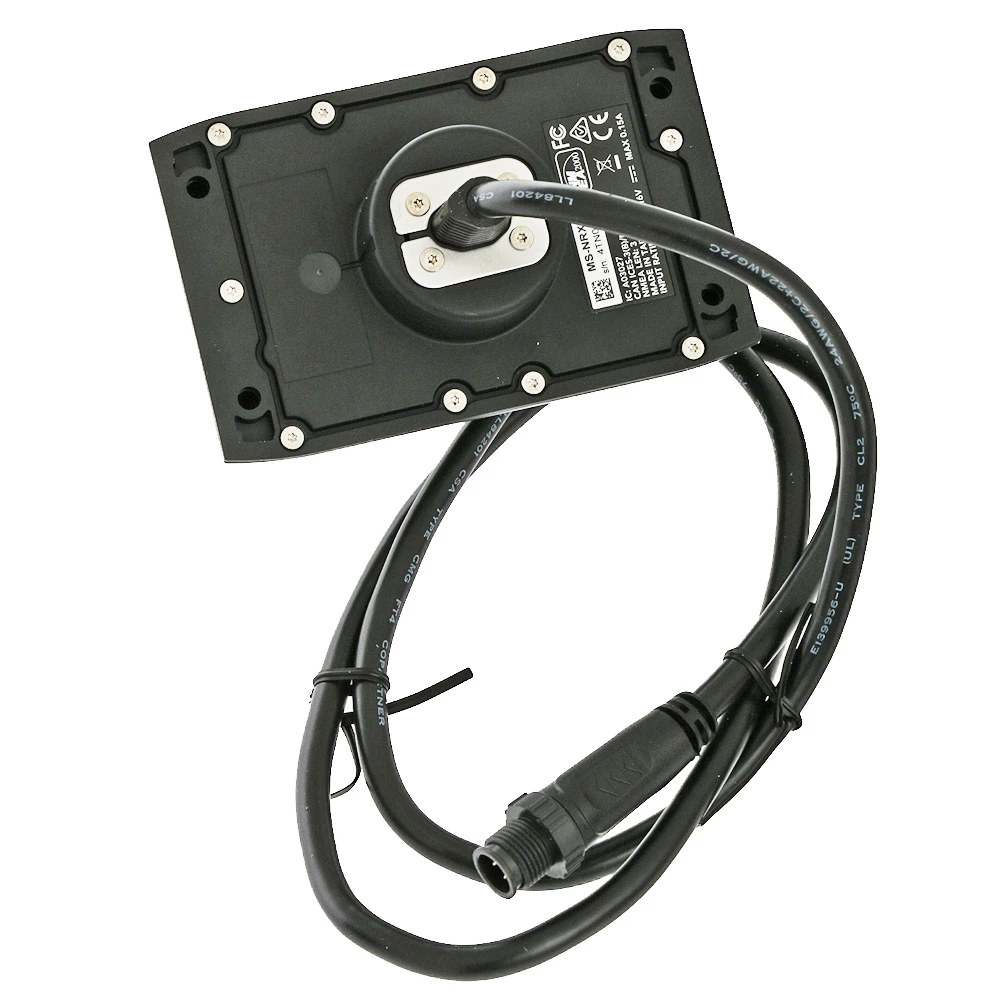

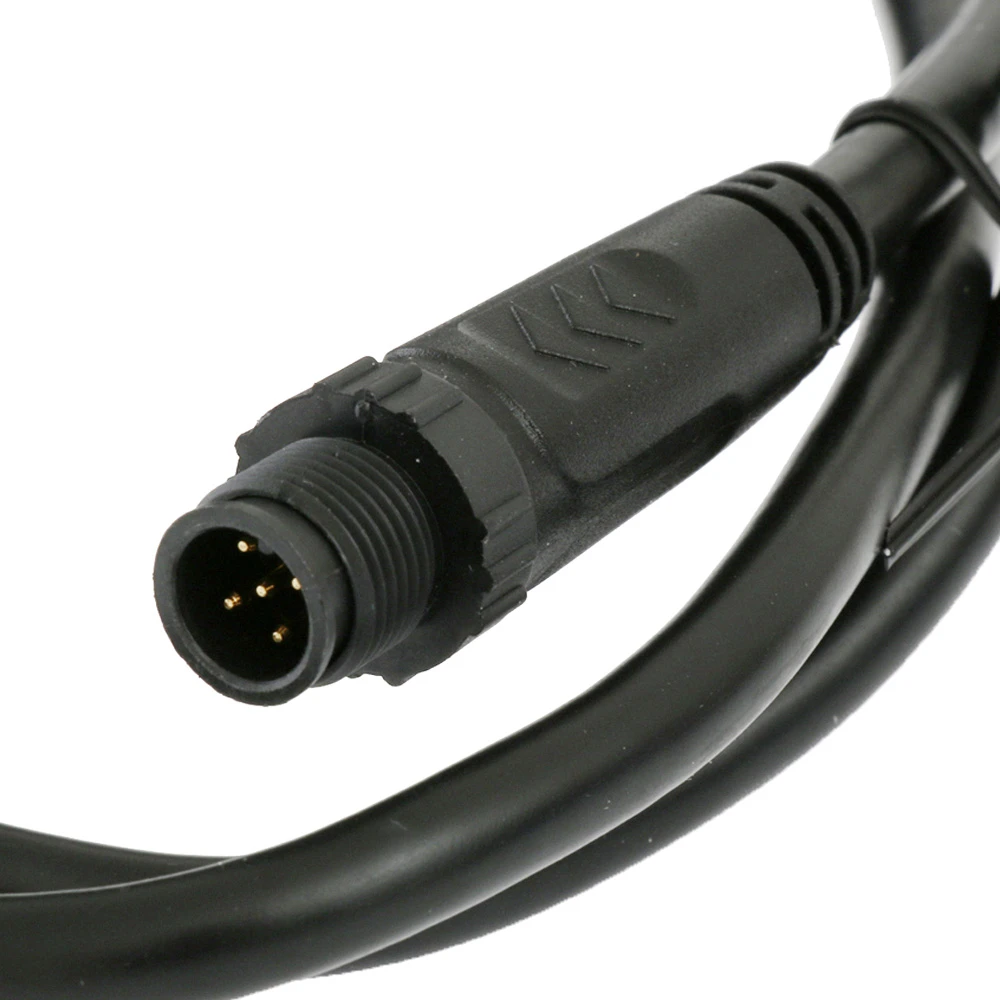

• 1 x MS-NRX300 Remote with 1m (3.28Ft) Drop Cable

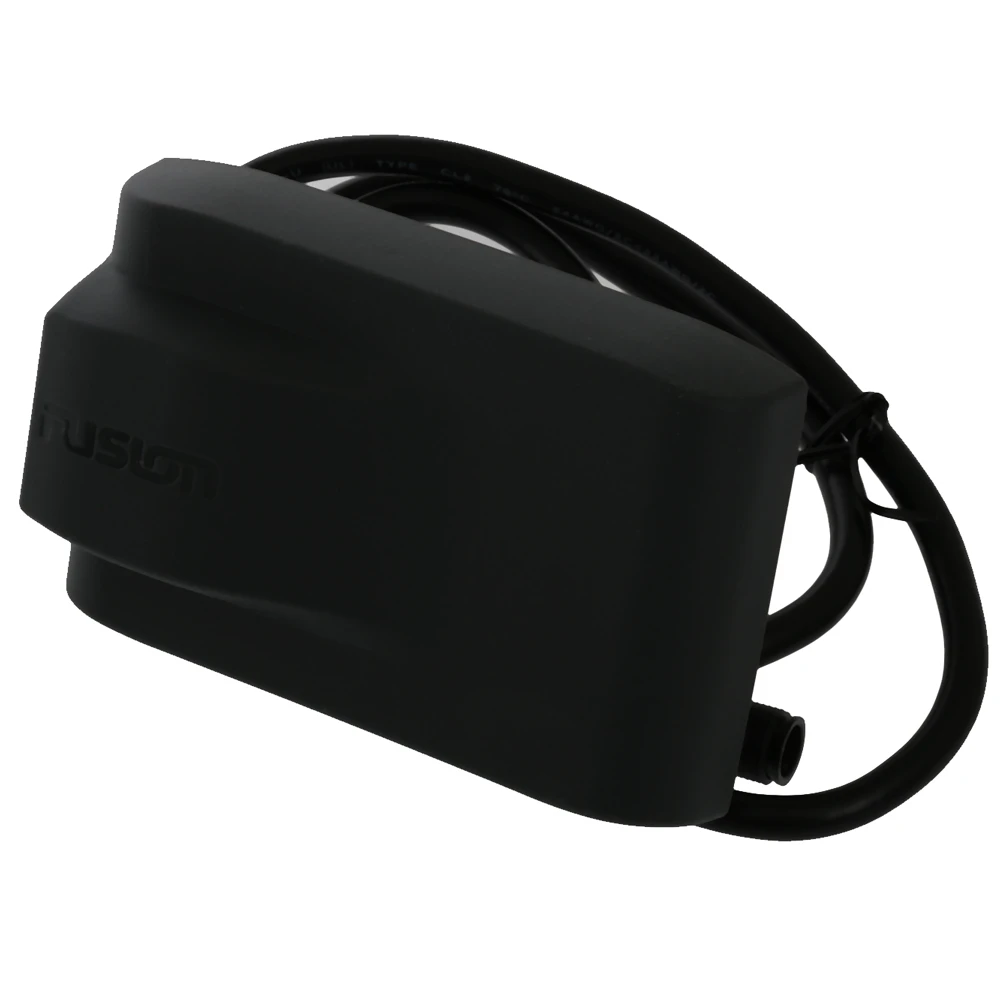

• 1 x Dust Cover

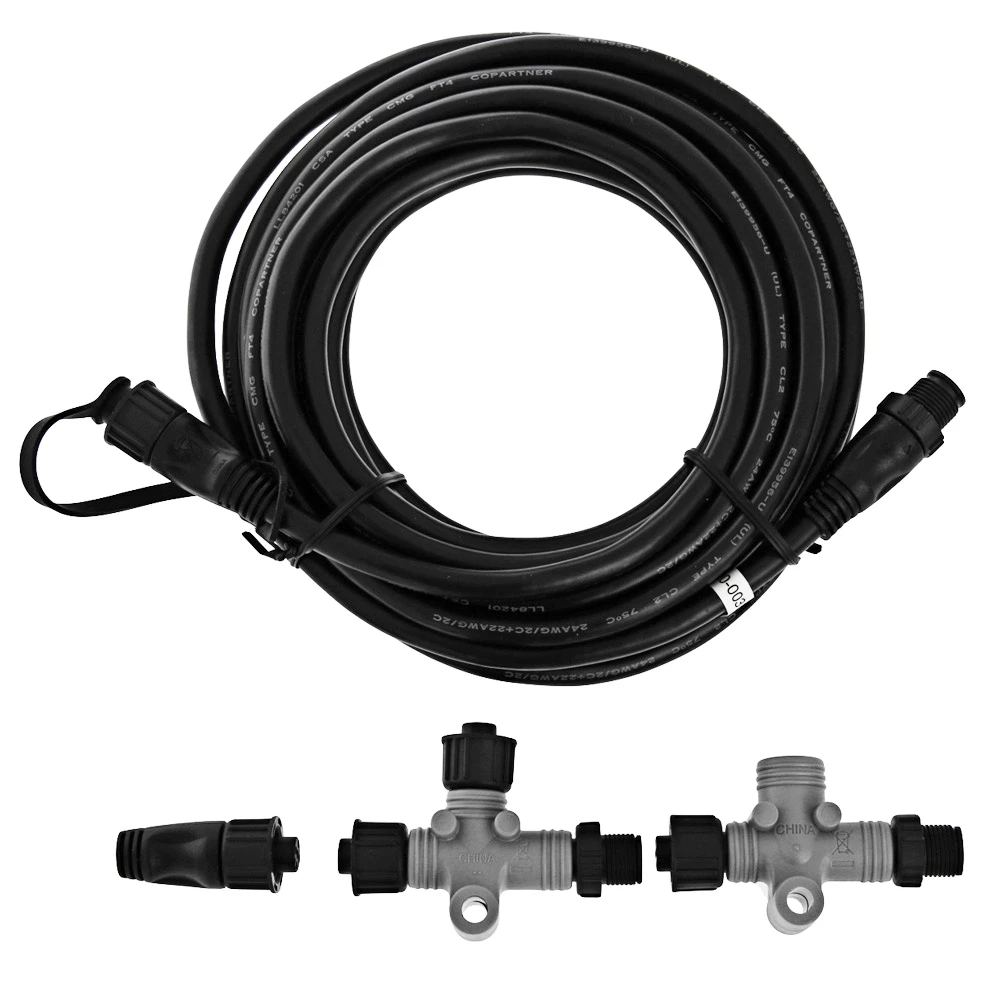

• 1 x 6m (20ft) NMEA 2000 Backbone Cable
• 1 x NMEA 2000 T-Connector
• 1 x NMEA 2000 Female Terminator
• 1 x NMEA 2000 In-line Terminator
• 1 x Hardware mounting kit
• 1 x Mounting template
• 1 x Installation Instructions
• 1 x Warranty card

Fusion MS-NRX300 Marine Wired Remote
Specifications:

• Compatible Fusion Products:
  MS-UD750,MS-AV750,MS-UD650,MS-AV650,MS-RA70N,MS-BB100,MS-RA205,MS-BB300,MS-IP700i,MS-AV700i
• NMEA 2000 Certification: LEN3

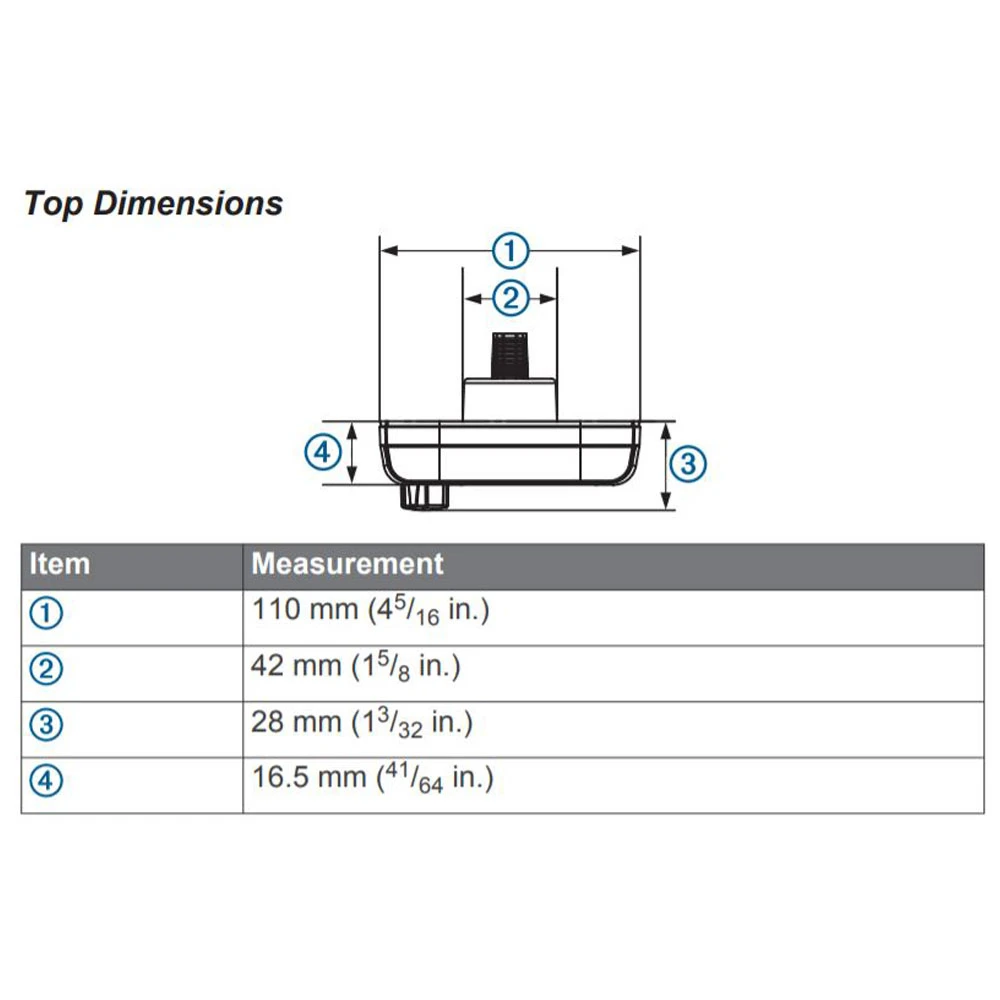

• Face plate size: 110 x 67mm

Fusion MS-NRX300 IPX7 Wired Remote Control Operator’s Manual
